E638834
Type: E638834
Input Voltage: 200-240V
Input Power: 2.7-3.2W
Emergency Power: 2.5-5W Max
Battery: LiFePO4 6.4V 1500mA

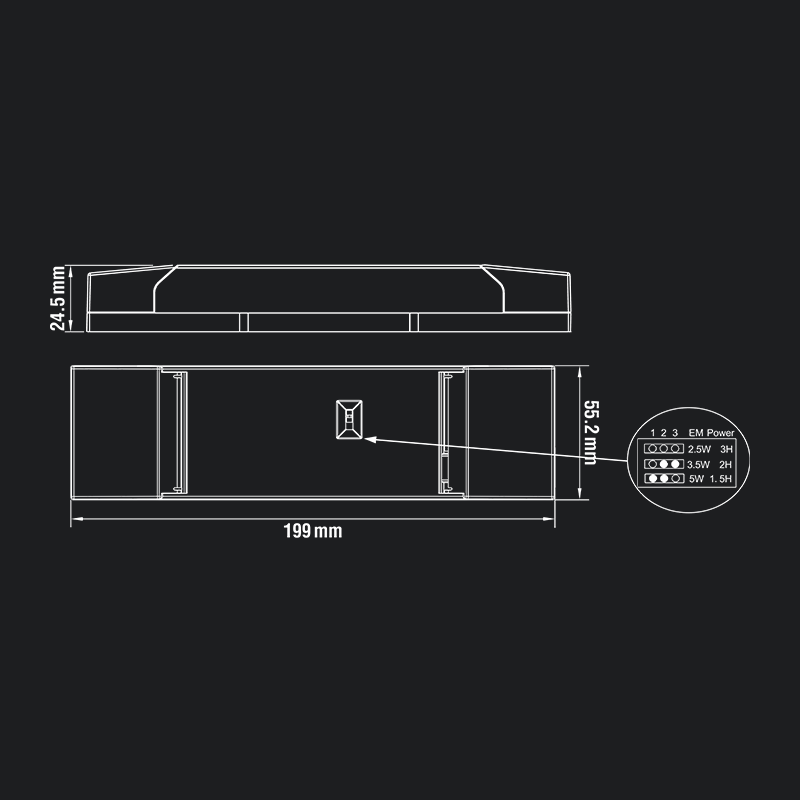

Emergency Time: 1.5-3 Hours
Mode Of Operation: Maintained / Non-maintained
For LED Module With A Forward Votage Of 80-230VDC
Properties

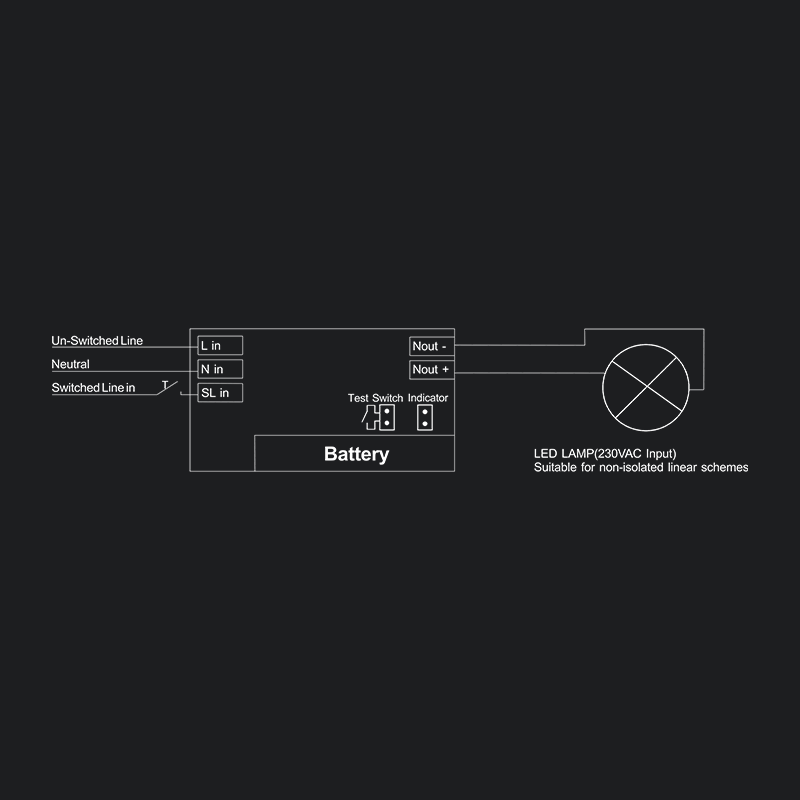

The output voltage can be raised to 230Vdc , directly connectly connected to the LED drive input(L,N)
Maintained / Non-maintained operation
1.5h-3h rated duration
Automatic shutdown of output if LED load is out of range
constant power output , output current self-adjustable
Electronic charge system
Deep discharge protection
Short-circuit-proof battery connection
Open-circuit-proof
Polarity reversal protection for battery
Technical Date
Rated supply voltage 220-240VAC
Mains input current, min 22mA
Mains input current, max 28mA
Input power in mains operation, min 2.7W±10%
Input power in mains operation, max 3.2W±10%
Battery charge time 16h/24h
